Phase Detector

Power Grid Voltage Detector

About Power Grid Voltage Detector

Phase detector device is intended to detect presence of mains power voltage on 6 Line wires against 3 Neutral wires (1 Neutral is shared with 2 Lines). Earth wire is not used. Power line side is galvanically isolated from the rest of device. Presence of power voltage is evaluated by means of AC zero crossing events counting and relative time measurement.

This device targets to monitoring and verification testing of power switching devices, such as general-purpose relays, triacs, heating systems etc.

Parameters

Parameter	Value
Mounting	35/7,5 DIN
Width	3 modules
Number of Inputs	6
Line Load	2 x 100 kOhm

Functions and Benefits

6 Lines evaluated at the time
Count zero-crossing events over time
ON and OFF state time measurement
Tolerance parameter allows for sparse missing periods and relay debouncing
Current state time measurement
1 Digital output Modbus RTU with address switch
Remote firmware update over Modbus

Download

pdf

PhaseDet-datasheet

Software

Softwar tools are available on Github supporting:

Graphical visualization of all registers
Read and write register operations
Update firmware of the device

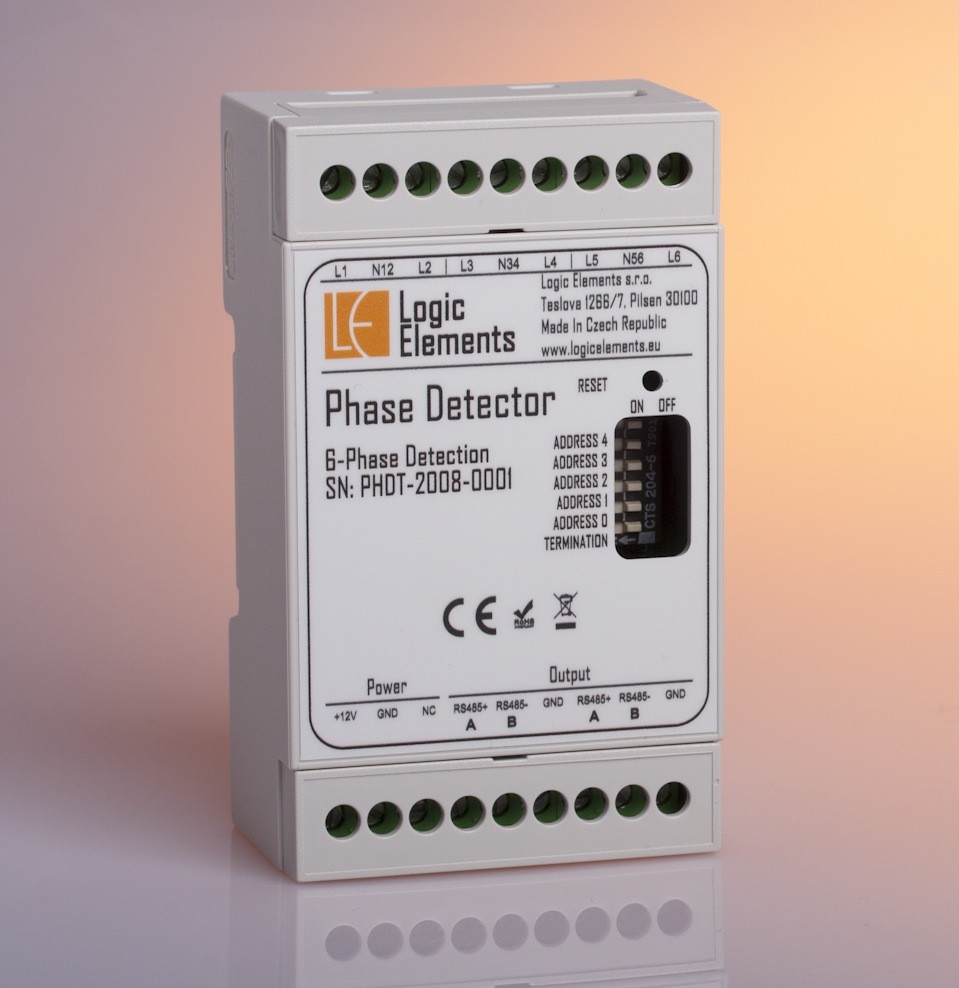

Photography
