VMS-1911 - Zebra Tape

Zebra tape

About Zebra tape

The VMS-1911 is the zebra reflection tape that is designed to be placed on the rotating shaft and sensed by the laser optical sensor. The front face of the tape is protected by plastic coating. The back side of the tape contains an adhesive layer that hardens at temperatures above 70 °C that makes the tape very resistant. The tape can be operated in temperature range from -40°C to 130°C without any significant changes.



The width of the tape was designed to fullfill special installation demands by the turbine operator, which is a rotor placing tollerance, shaft sensor spacing and detection accuracy.  Typical applications are mostly the torsional vibration measurement, and Torque measurement. The Zebra tape was designed to speed-up system installation and to get better integrity of the system.



VMS-1911 is compatible with all VMS optical sensors such as VMS-1503 and VMS-1903.

Parameters

Parameter Value
Length of reflective stripe 1 cm
Length of non-reflective stripe 1 cm
Total length 3 meters
Width 2 cm

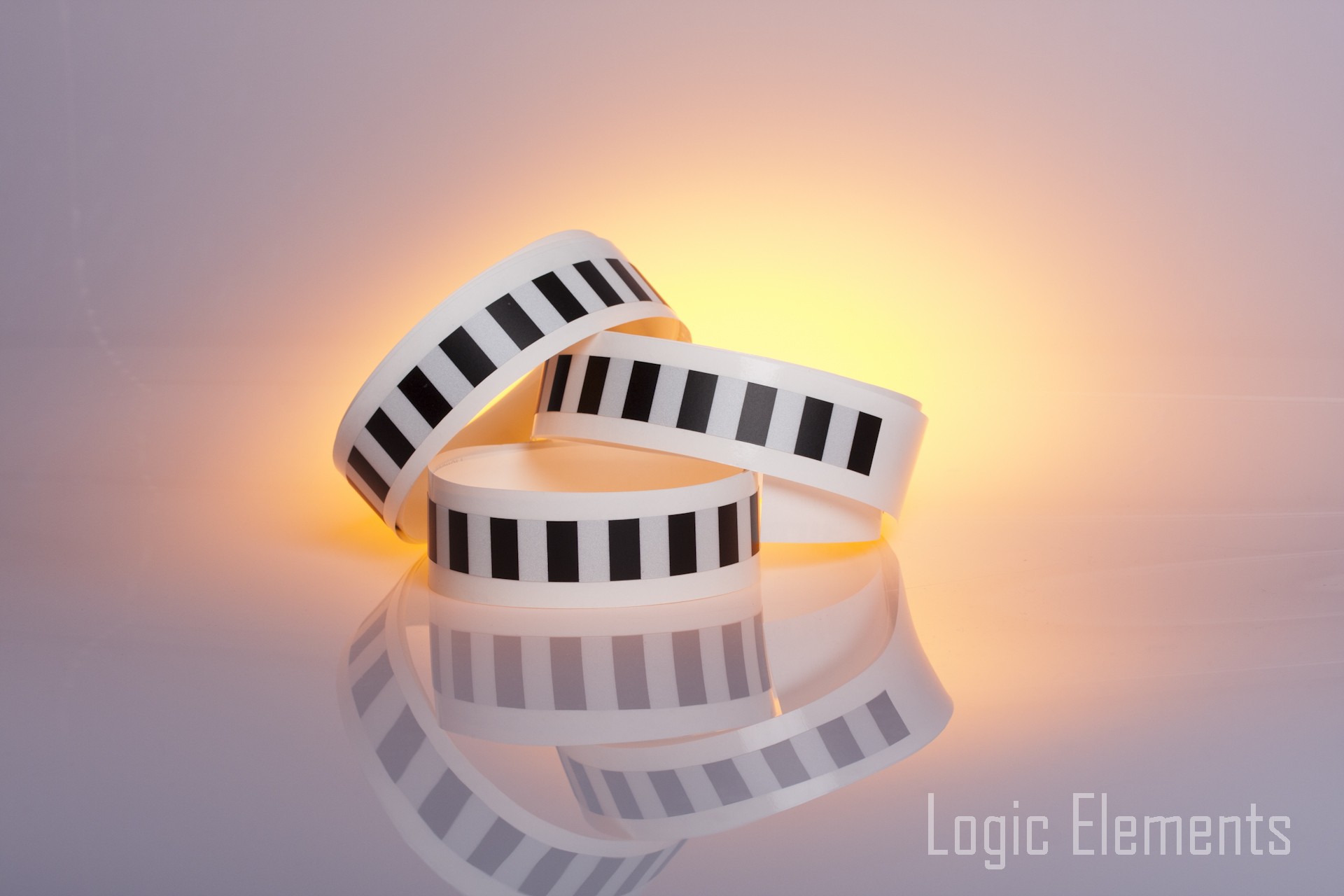

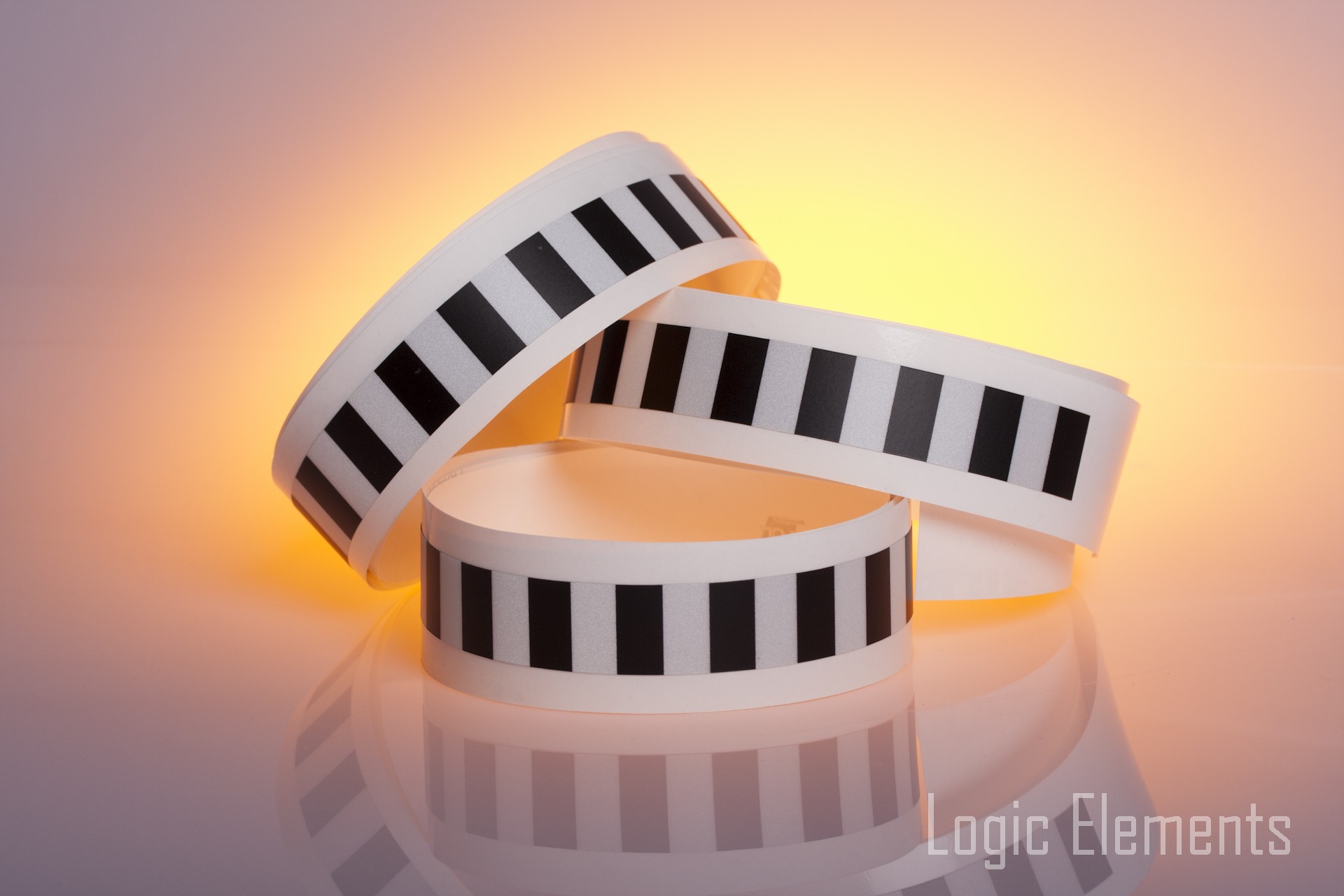

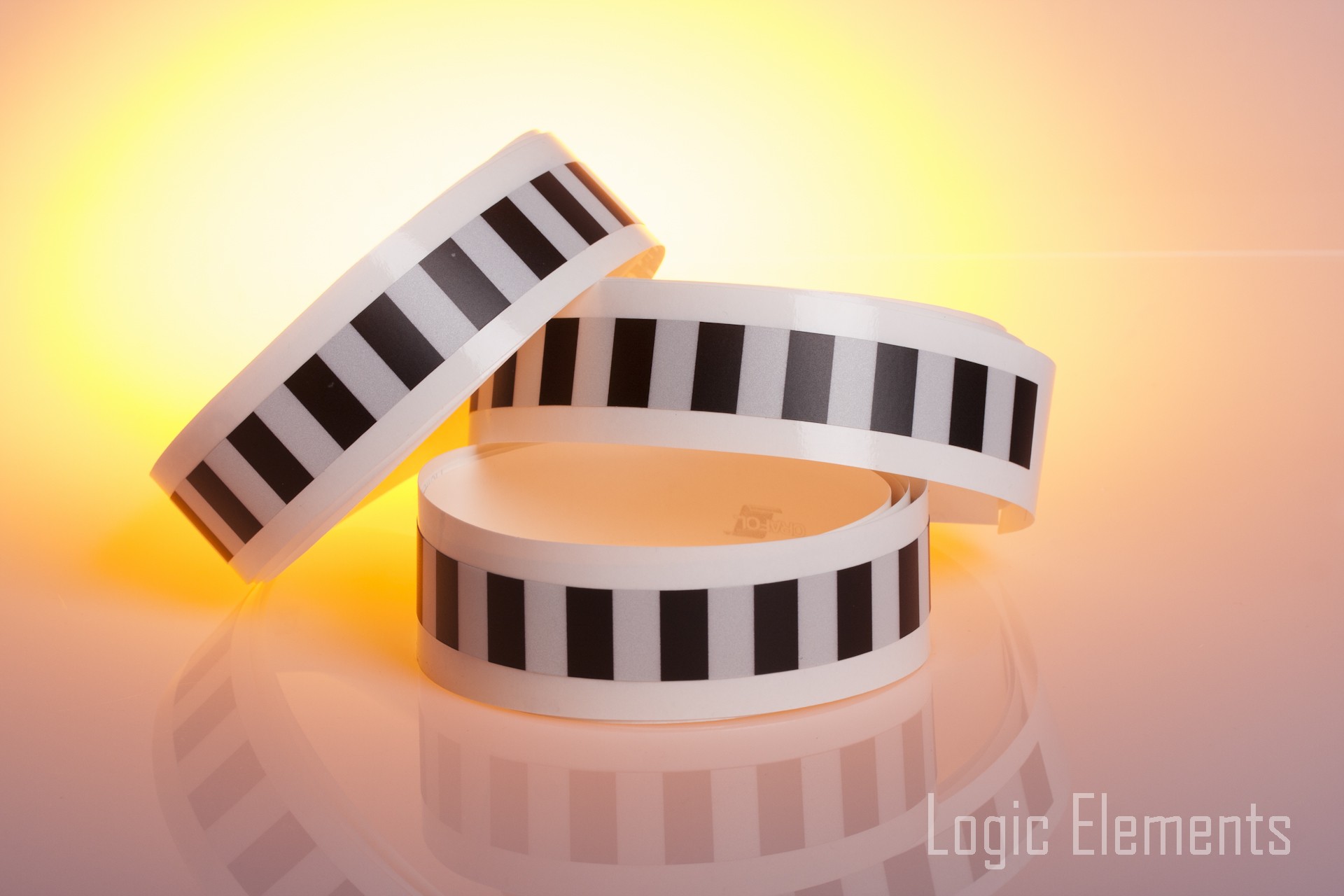

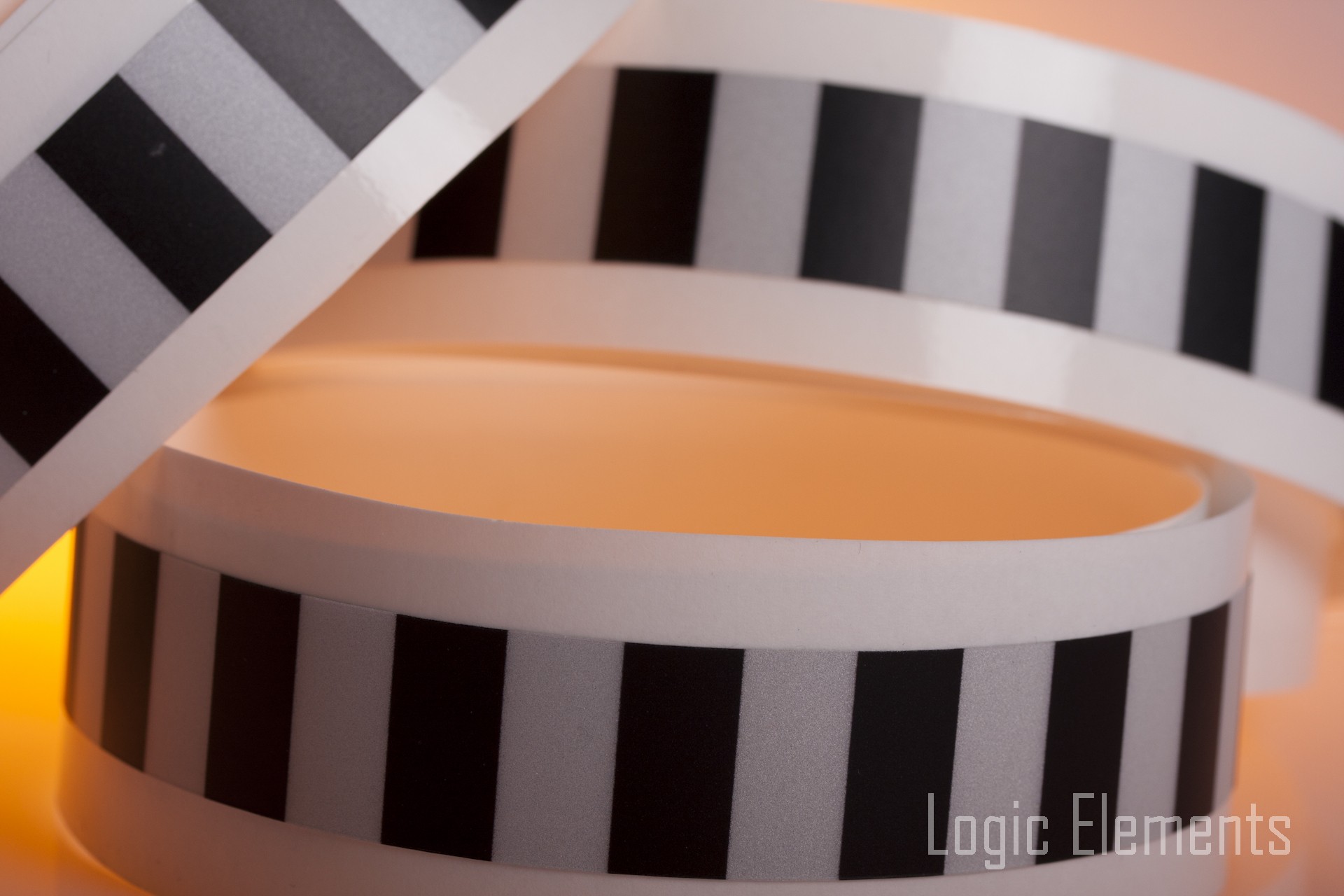

Photogallery
